MAGNETIC COOLANT FILTERS
MAGNETIC COOLANT FILTER
MAG TOOL’S Magnetic Coolant Filters designed for filtering coolant oils contaminated with ferrous materials. These equipments are light weight, compact design and easily be installed. These Magnetic Coolant Filters are manufactured in 2 Models, TAP & ATP
APPLICATIONS USED FOR

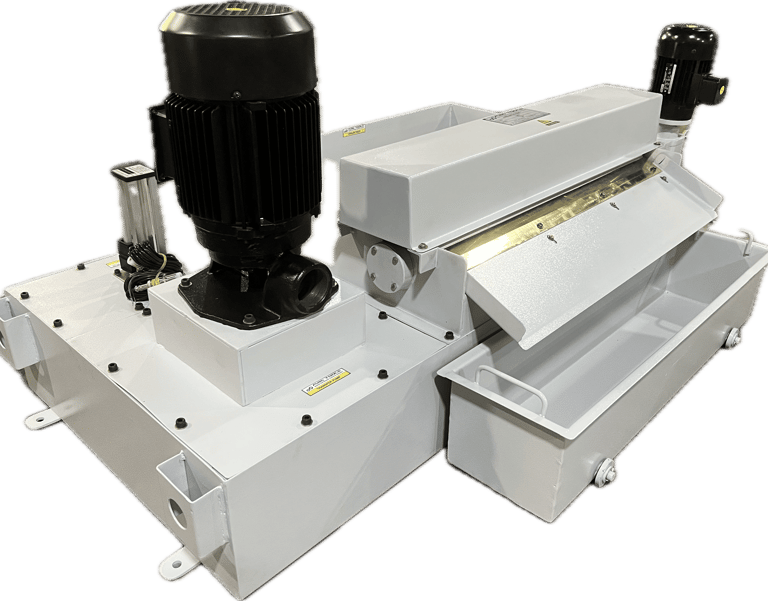

These Magnetic Separators / Magnetic Filters can be used with all types of Grinding machines such as Cylindrical, Center less, internal, Surface, Double-disc & Roll-grinding machines. These can also be used for filtering honing oil of Honing machines with a optional coolant tank and coolant pump,This unit can be coupled with paper band coolant filter.

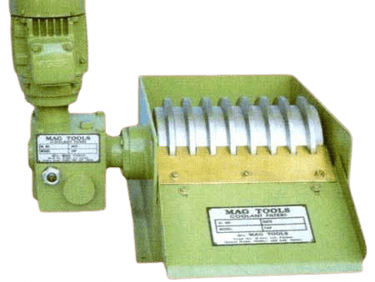

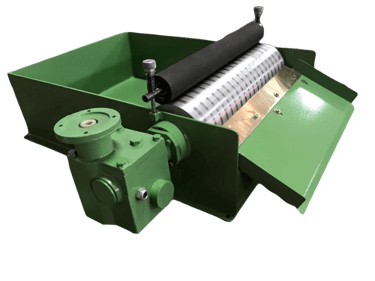

MAGNETIC COOLANT FILTER MODEL ATP
The magnetic drum is made out of powerful ring magnets which also produces field 30 mm above the drum. Very fine particles will be arrested without slip. The magnetic material will not loose its strength even after number of years of use.These filters are available in 30 to 500 liter per minute filtering capacity. These filters can be coupled with Hydrocyclone, Paper Band, cartridge filters etc. And are also manufactured as per customer requirements.
DOUBLE REDUCTION WORM GEARBOX
The drive of the drum is achieved by double reduction worm and worm wheel. The worms are made in high carbon steel, hardened and ground which run on sealed ball bearings. The worm wheels are made in high wear resistance materials. An oil indicator is provided to ensure the level of oil in the gear box. This box is designed for continues and trouble free running for years.
WORKING PRINCIPLES
The contaminated coolant from the machine is fed into the inlet of magnetic filter / Magnetic coolant separator. As it passes through the gap between the drum and the body, the dust particles are arrested by the magnetic drum. A synthetic rubber roller mounted on springs, squeezes the dust and allows only dry power, which is further scraped out from the drum by scraper and is collected in the dust collecting tray. The filtration level achieved will be almost 95% for ferrous particles.

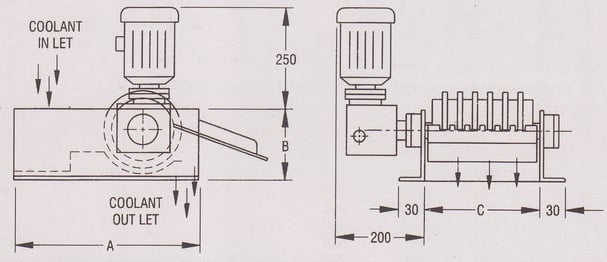

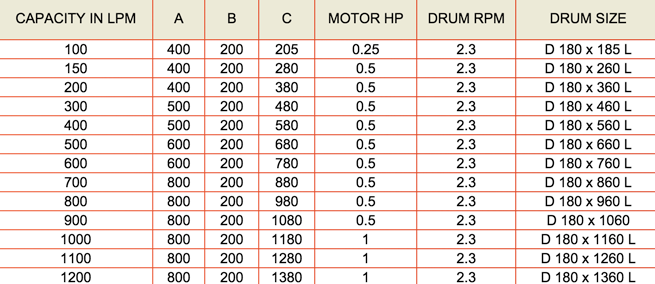

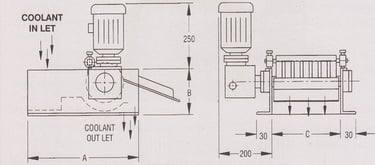

DIMENSIONAL DETAILS OF MAGNETIC COOLANT FILTER MODEL - TAP ( SLOTTED )

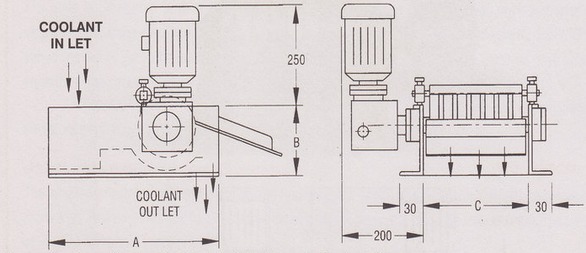

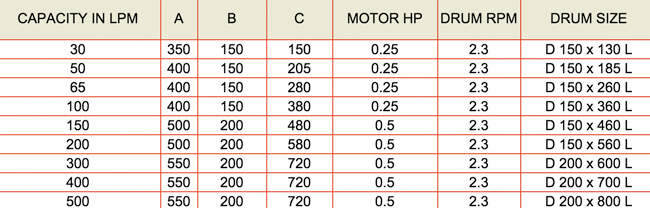

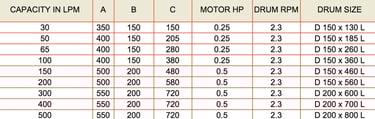

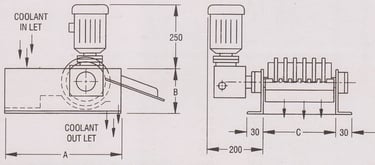

DIMENSIONAL DETAILS OF MAGNETIC COOLANT FILTER MODEL - ATP ( PLAIN DRUM )

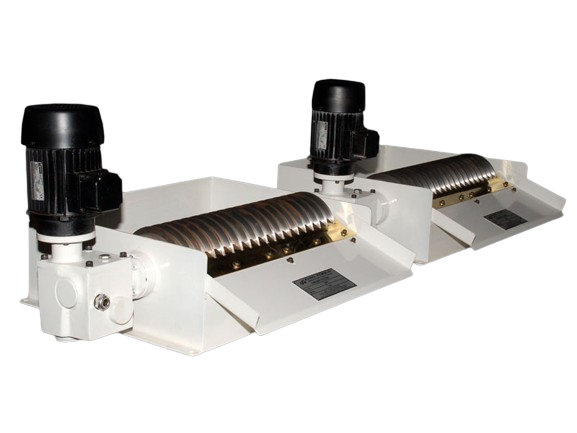

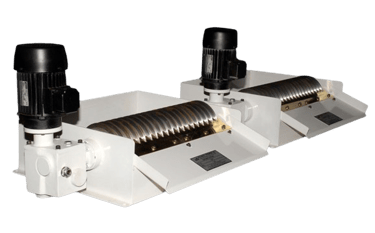

MAGNETIC COOLANT FILTER MODEL TAP
The body is fabricated in thick sheet metal. The magnetic drum is slotted type with powerful ring magnets. The magnetic field will be throughout the periphery. This produces magnetic field 30 mm above the drum. Very fine particles will be arrested without slip. The magnetic material used will not loose its strength even after number of years of use.Magnetic Coolant Filter with 100 to 1200 liters per minute filtering capacity are available in single construction.
Magnetic Coolant Separator For Superior Grinding Finish...
